UltraHD Dome Cameras

IP-2000-DC

This is a very small and inconspicuous dome camera, that is ideally suited for discreet survaillance, for example in shops. It has a extra shutterproof (IK10) dome and hidden cables make sabotage proof. Furthermore the IP-2000-DC detected other kinds of sabotage, for example painting the dome, and gives an alarm. The alarm can be silent, an e-mail or whatsapp, or the camera can also be linked to a traditional alaram system. And it is possible to send the records and alarms to an extern security company or monitoring center.

UltraHD    IR    CPU    PoE    IP66    IK10    Schnittstellen    Sabotageschutz   CompactDesign

IP-2000-DC

Functions
Best Image Sensor Technology
Sensivity: 1,8 Lux at color modus and up to 0,1 Lux at black/white modus
Fast Processor Technology
Up to 30 frames/16 MBit pro second, supports constant or dynamic bit rate
Multible Interfaces
10/100 MBit BASE-TX, RJ-45, RS232
Power over Ethernet
Power and network over just one CAT5 cable
IP66 certified
Extra waterproof, hose water protection
IK10 vandalismproof
Extra stout aluminium casing and shutterproof plexiglass dome (up to 20 Joule)
Features
Image sensor3 megapixel CMOS
Lens3,6 mm (optinal 2,8 mm, 6 mm, 8 mm)
Frame rateUp to 30 frames/16 MBit per second
IlluminationInfrared LEDs, reach: up to
15 m, dimable
Backlight compensationAdwanced WDR (Wide Dynamic Range)
Color-encoding systemPAL or NTSC
DomeAnti-fogg-coating
Max. resolution2048×1536 at max. resolution
1920×1080, or 1280×720 , 25 or 30 frames/sec
Alternative resolution704×576, 352×288
(25 or 30 frames/sec)
Image compressionH.265 or MJPEG
Storage Extern
Power over EthernetYes
Interfaces10/100 MBit BASE-TX, RJ-45, RS232
WiFiNo
Event detectionNetwork loss, signal loss, alarm input, motion detection
Alarm outputE-Mail, Internet Explorer, Software
Sabotage protectionHidden cables
Talk backOptinal integrated microfon
Remote accessPC, Smartphone, Tablet
Protection classIP66 (waterproof)
IK10 (vandalismproof)
Max. huminity90 %
Operating temperature-20° to 60° C
Operating Voltage12 V DC
Size (mm)54 (h) x 110 (Ø)
Weight0,25 kg

IP-2000-DC

IP-2000-DC

This is a very small and inconspicuous dome camera, that is ideally suited for discreet survaillance, for example in shops. It has a extra shutterproof (IK10) dome and hidden cables make sabotage proof. Furthermore the IP-2000-DC detected other kinds of sabotage, for example painting the dome, and gives an alarm. The alarm can be silent, an e-mail or whatsapp, or the camera can also be linked to a traditional alaram system. And it is possible to send the records and alarms to an extern security company or monitoring center.

UltraHD    IR    CPU    PoE    IP66    IK10    Schnittstellen    Sabotageschutz   CompactDesign

Functions
Best Image Sensor Technology
Sensivity: 1,8 Lux at color modus and up to 0,1 Lux at black/white modus
Fast Processor Technology
Up to 30 frames/16 MBit pro second, supports constant or dynamic bit rate
Multible Interfaces
10/100 MBit BASE-TX, RJ-45, RS232
Power over Ethernet
Power and network over just one CAT5 cable
IP66 certified
Extra waterproof, hose water protection
IK10 vandalismproof
Extra stout aluminium casing and shutterproof plexiglass dome (up to 20 Joule)

Features
Image sensor3 megapixel CMOS
Lens3,6 mm (optinal 2,8 mm, 6 mm, 8 mm)
Frame rateUp to 30 frames/16 MBit per second
IlluminationInfrared LEDs, reach: up to
15 m, dimable
Backlight compensationAdwanced WDR (Wide Dynamic Range)
Color-encoding systemPAL or NTSC
DomeAnti-fogg-coating
Max. resolution2048×1536 at max. resolution
1920×1080, or 1280×720 , 25 or 30 frames/sec
Alternative resolution704×576, 352×288
(25 or 30 frames/sec)
Image compressionH.265 or MJPEG
Storage Extern
Power over EthernetYes
Interfaces10/100 MBit BASE-TX, RJ-45, RS232
WiFiNo
Event detectionNetwork loss, signal loss, alarm input, motion detection
Alarm outputE-Mail, Internet Explorer, Software
Sabotage protectionHidden cables
Talk backOptinal integrated microfon
Remote accessPC, Smartphone, Tablet
Protection classIP66 (waterproof)
IK10 (vandalismproof)
Max. huminity90 %
Operating temperature-20° to 60° C
Operating Voltage12 V DC
Size (mm)54 (h) x 110 (Ø)
Weight0,25 kg

IP-2010-DE

This dome camera was made for a extra unobtrusive surveillance. It has an in-built constructon for drop ceilings and the part which keeps outside can be orderd in differnt colours. That makes it possible to integrate this camera in nearly every enviroment. So the IP-2010-DE is perfect for the installation in areas with a high aesthetic standard like chanceries, hotels or bars.

UltraHD    CPU    PoE    Schnittstellen    Sabotageschutz   CompactDesign Farben IP-2010-DE

Functions
Best Image Sensor Technology
Sensivity: 1,8 Lux at color modus and up to 0,1 Lux at black/white modus
Fast Processor Technology
Up to 30 frames/16 MBit pro second, supports constant or dynamic bit rate
Multible Interfaces
10/100 MBit BASE-TX, RJ-45, RS232
Power over Ethernet
Power and network over just one CAT5 cable
Features
Image sensor2 megapixel CMOS
Lens4 mm (optional 2,8 or 6 mm)
Frame rateUp to 30 frames/16 MBit per second
IlluminationNo
Backlight compensationAdwanced WDR (Wide Dynamic Range)
Color-encoding systemPAL or NTSC
DomeAnti-fogg-coating
Max. resolution1280x960 or 1920×1080 bei 30 frames/sec
Alternative resolution704×576 (30 frames/sec)
Image compressionH.264 oder MJPEG
Storage Bis zu 128 GB MicroSD Karte
Power over EthernetJa
Interfaces10/100 MBit BASE-TX, RJ-45, RS232
WiFiOptional
Event detectionNetwork loss, signal loss, alarm input, motion detection, line crossing
Alarm outputE-Mail, Internet Explorer, Software
Sabotage protectionHidden cables
FernsprechfunktionNo
Talk backPC, Smartphone, Tablet
Max. huminity95 %
Operating temperature-10° bis 40° C
Operating voltage12 V DC
Size (mm)93,9 (H) x 121,6 (Ø)
Weight0,2 kg

IP-2010-DE


Farben IP-2010-DE

This dome camera was made for a extra unobtrusive surveillance. It has an in-built constructon for drop ceilings and the part which keeps outside can be orderd in differnt colours. That makes it possible to integrate this camera in nearly every enviroment. So the IP-2010-DE is perfect for the installation in areas with a high aesthetic standard like chanceries, hotels or bars.

UltraHD    CPU    PoE    Schnittstellen    Sabotageschutz   CompactDesign

Functions
Best Image Sensor Technology
Sensivity: 1,8 Lux at color modus and up to 0,1 Lux at black/white modus
Fast Processor Technology
Up to 30 frames/16 MBit pro second, supports constant or dynamic bit rate
Multible Interfaces
10/100 MBit BASE-TX, RJ-45, RS232
Power over Ethernet
Power and network over just one CAT5 cable

Features
Image sensor2 megapixel CMOS
Lens4 mm (optional 2,8 or 6 mm)
Frame rateUp to 30 frames/16 MBit per second
IlluminationNo
Backlight compensationAdwanced WDR (Wide Dynamic Range)
Color-encoding systemPAL or NTSC
DomeAnti-fogg-coating
Max. resolution1280x960 or 1920×1080 bei 30 frames/sec
Alternative resolution704×576 (30 frames/sec)
Image compressionH.264 oder MJPEG
Storage Bis zu 128 GB MicroSD Karte
Power over EthernetJa
Interfaces10/100 MBit BASE-TX, RJ-45, RS232
WiFiOptional
Event detectionNetwork loss, signal loss, alarm input, motion detection, line crossing
Alarm outputE-Mail, Internet Explorer, Software
Sabotage protectionHidden cables
FernsprechfunktionNo
Talk backPC, Smartphone, Tablet
Max. huminity95 %
Operating temperature-10° bis 40° C
Operating voltage12 V DC
Size (mm)93,9 (H) x 121,6 (Ø)
Weight0,2 kg

IP-2010-D

This dome camera has a manual pan, nearly up to 360° and is able to surveill even areas, that are difficult to visit. It has infred LEDs which enables ultra brillant videos in the dark. With its water- and schutterproof housing the IP-2010-D is also suitable for outdoor installation. In the opposite of smaller dome cameras, everybody identify this as a surveillance camera, so it scares many offenders

UltraHD    IR    CPU    PoE    IP66    IK10    Schnittstellen    Sabotageschutz

IP-2010-D

Functions
Best Image Sensor Technology
Sensivity: 0,1 Lux at color modus and 0 Lux at black/white modus
Fast Processor Technology
Up to 30 frames/16 MBit pro second, supports constant or dynamic bit rate
Multible Interfaces
10/100 MBit BASE-TX, RJ-45, RS232
Power over Ethernet
Power and network over just one CAT5 cable
IP66-zertifiziert
Extra waterproof, hose water protection
IK10 vandalismproof
Extra stout aluminium casing and shutterproof plexiglass dome (up to 20 Joule)
Features
Image sensor4 megapixel CMOS
Lens2,8 mm, 4 mm, or 8 mm
Frame rateUp to 30 frames/16 MBit per second
IlluminationInfrared LEDs, reach: up to 30 m
Backlight compensationAdwanced WDR (Wide Dynamic Range)
Color-encoding systemPAL or NTSC
DomeAnti-fogg-coating, shutterproof
Max. resolution2688×1520 at 20 frames per sec
1920×1080, or 1280×720, 25 or 30 frames/sec
Alternative resolution640x360, 352×288
(25 or 30 frames/sec)
Image compressionH.264 or MJPEG
StorageUp to 128 GB MicroSD card
Power over EthernetYes
Interfaces10/100 MBit BASE-TX, RJ-45, RS232
WiFiOptional
Event detectionNetwork loss, signal loss, alarm input, motion detection, line crossing
Alarm outputE-Mail, Internet Explorer, Software
Sabotage protectionHidden cables
Talk backIntegrated mikrofon
Remote accessPC, Smartphone, Tablet
Protection classIP66 (waterproof)
IK10 (vandalismproof)
Max. huminity95 %
Operating temperature-30° to 60° C
Operating voltage12 V DC
Size (mm)82 (h) x 111 (Ø)
Weight0,5 kg

IP-2010-D

IP-2010-D

This dome camera has a manual pan, nearly up to 360° and is able to surveill even areas, that are difficult to visit. It has infred LEDs which enables ultra brillant videos in the dark. With its water- and schutterproof housing the IP-2010-D is also suitable for outdoor installation. In the opposite of smaller dome cameras, everybody identify this as a surveillance camera, so it scares many offenders

UltraHD    IR    CPU    PoE    IP66    IK10    Schnittstellen    Sabotageschutz

Functions
Best Image Sensor Technology
Sensivity: 0,1 Lux at color modus and 0 Lux at black/white modus
Fast Processor Technology
Up to 30 frames/16 MBit pro second, supports constant or dynamic bit rate
Multible Interfaces
10/100 MBit BASE-TX, RJ-45, RS232
Power over Ethernet
Power and network over just one CAT5 cable
IP66-zertifiziert
Extra waterproof, hose water protection
IK10 vandalismproof
Extra stout aluminium casing and shutterproof plexiglass dome (up to 20 Joule)
Features
Image sensor4 megapixel CMOS
Lens2,8 mm, 4 mm, or 8 mm
Frame rateUp to 30 frames/16 MBit per second
IlluminationInfrared LEDs, reach: up to 30 m
Backlight compensationAdwanced WDR (Wide Dynamic Range)
Color-encoding systemPAL or NTSC
DomeAnti-fogg-coating, shutterproof
Max. resolution2688×1520 at 20 frames per sec
1920×1080, or 1280×720, 25 or 30 frames/sec
Alternative resolution640x360, 352×288
(25 or 30 frames/sec)
Image compressionH.264 or MJPEG
StorageUp to 128 GB MicroSD card
Power over EthernetYes
Interfaces10/100 MBit BASE-TX, RJ-45, RS232
WiFiOptional
Event detectionNetwork loss, signal loss, alarm input, motion detection, line crossing
Alarm outputE-Mail, Internet Explorer, Software
Sabotage protectionHidden cables
Talk backIntegrated mikrofon
Remote accessPC, Smartphone, Tablet
Protection classIP66 (waterproof)
IK10 (vandalismproof)
Max. huminity95 %
Operating temperature-30° to 60° C
Operating voltage12 V DC
Size (mm)82 (h) x 111 (Ø)
Weight0,5 kg

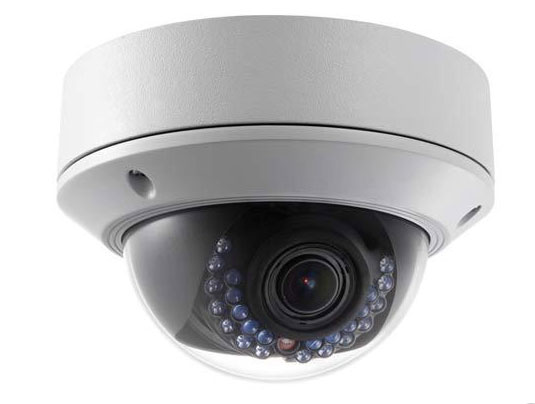

IP-2000-VPD

The IP-2000-VPD was created to brave even hardestconditions. It is IP66 waterproof, that meens that even the pressure of a fire hose can not harm it. And it has an IK10 certification, on of the highest shutterproof classes. So it survive hardest blows like windthrows, malfunction in the industry or vandalism. No mader if it is installed at a factory building, a defecator or a station forecourt – this camera makes allways brillant videos and images, at day and night. This ensure its 3 megapixel sensor and the infraret lights. Furthermore it has a special software (Smart-Surveillance) which can detect faces, entering persons or the loss of objects in a scene.

UltraHD    IR    CPU    PoE    IP66    IK10    Schnittstellen    Sabotageschutz

IP-2000-VPD

Functions
Best Image Sensor Technology
Sensivity: 0,1 Lux at color modus and 0,005 Lux at black/white modus
Fast Processor Technology
Up to 30 frames/16 MBit pro second, supports constant or dynamic bit rate
Multible Interfaces
10/100 MBit BASE-TX, RJ-45, RS232
Power over Ethernet
Power and network over just one CAT5 cable
IP66 certified
Extra waterproof, hose water protection
IK10 vandalismproof
Extra stabiles Extra stout aluminium casing and shutterproof plexiglass dome (up to 20 Joule)
Features
Image sensor3 megapixel CMOS
Lens2,7 - 12 mm, manual zoom
Frame rateUp to 30 frames/16 MBit per second
IlluminationInfrared LEDs, reach: up to
15 m, dimable
Backlight compensationAdwanced WDR (Wide Dynamic Range)
Color-encoding systemPAL or NTSC
DomeAnti-fogg-coating
Max. resolution2048×1536 at max. resolution
1920×1080, or 1280×720 , 25 or 30 frames/sec.
Alternative resolution704×576, 352×288
(25 or 30 frames/sec)
Image compressionH.265 or MJPEG
Storage Extern
Power over EthernetYes
Interfaces10/100 MBit BASE-TX, RJ-45, RS232
WiFiNo
Event detectionNetwork loss, signal loss, alarm input, motion detection
Smart SurveillanceSofteware detects faces,
line crossing, scene changing etc.
Alarm outputE-Mail, Internet Explorer, Software
Sabotage protectionHidden cables
Talk backOptinal integrated microfon
Remote accessPC, Smartphone, Tablet
Protection classIP66 (waterproof)
IK10 (vandalismproof)
Max. huminity90 %
Operating temperature-20° to 60° C
Operating Voltage12 V DC
Size (mm)119 (h) x 151 (Ø)
Weight1,25 kg

IP-2000-VPD

IP-2000-VPD

The IP-2000-VPD was created to brave even hardestconditions. It is IP66 waterproof, that meens that even the pressure of a fire hose can not harm it. And it has an IK10 certification, on of the highest shutterproof classes. So it survive hardest blows like windthrows, malfunction in the industry or vandalism. No mader if it is installed at a factory building, a defecator or a station forecourt – this camera makes allways brillant videos and images, at day and night. This ensure its 3 megapixel sensor and the infraret lights. Furthermore it has a special software (Smart-Surveillance) which can detect faces, entering persons or the loss of objects in a scene.

UltraHD    IR    CPU    PoE    IP66    IK10    Schnittstellen    Sabotageschutz

Functions
Best Image Sensor Technology
Sensivity: 0,1 Lux at color modus and 0,005 Lux at black/white modus
Fast Processor Technology
Up to 30 frames/16 MBit pro second, supports constant or dynamic bit rate
Multible Interfaces
10/100 MBit BASE-TX, RJ-45, RS232
Power over Ethernet
Power and network over just one CAT5 cable
IP66 certified
Extra waterproof, hose water protection
IK10 vandalismproof
Extra stabiles Extra stout aluminium casing and shutterproof plexiglass dome (up to 20 Joule)

Features
Image sensor3 megapixel CMOS
Lens2,7 - 12 mm, manual zoom
Frame rateUp to 30 frames/16 MBit per second
IlluminationInfrared LEDs, reach: up to
15 m, dimable
Backlight compensationAdwanced WDR (Wide Dynamic Range)
Color-encoding systemPAL or NTSC
DomeAnti-fogg-coating
Max. resolution2048×1536 at max. resolution
1920×1080, or 1280×720 , 25 or 30 frames/sec.
Alternative resolution704×576, 352×288
(25 or 30 frames/sec)
Image compressionH.265 or MJPEG
Storage Extern
Power over EthernetYes
Interfaces10/100 MBit BASE-TX, RJ-45, RS232
WiFiNo
Event detectionNetwork loss, signal loss, alarm input, motion detection
Smart SurveillanceSofteware detects faces,
line crossing, scene changing etc.
Alarm outputE-Mail, Internet Explorer, Software
Sabotage protectionHidden cables
Talk backOptinal integrated microfon
Remote accessPC, Smartphone, Tablet
Protection classIP66 (waterproof)
IK10 (vandalismproof)
Max. huminity90 %
Operating temperature-20° to 60° C
Operating Voltage12 V DC
Size (mm)119 (h) x 151 (Ø)
Weight1,25 kg
